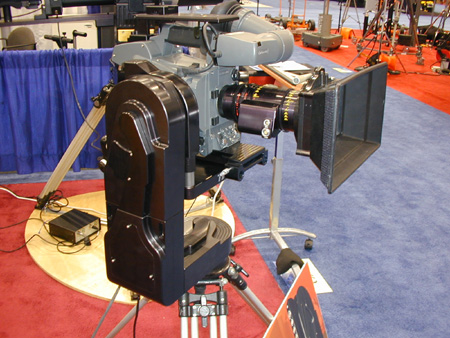

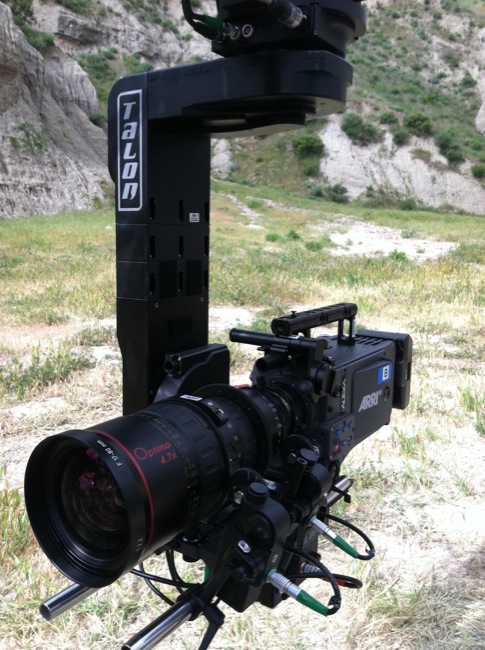

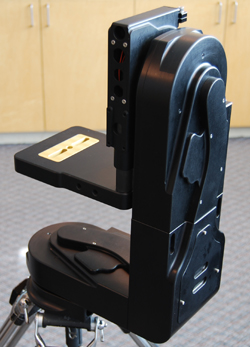

The Talon is a high quality compact pan / tilt camera head complete with frame-accurate repeatability and time-lapse capabilities. It is designed for HD cameras and compact camera systems, an is very precise, quiet, and capable of smoothly controlling cameras with extreme zoom lenses.
– Talon Repeatability VideosTALON HEAD SPECS
- HEIGHT – 20.5 inches
- WIDTH – 12 inches
- DEPTH – 5.75 inches
- WEIGHT – 22.5 pounds
- MAX CAMERA WEIGHT – 50 pounds
- PAN SPEED – 2.0 sec for 180 degrees
- TILT SPEED – 2.0 sec for 180 degrees
- MECHANICAL TRAVEL – 540 degrees each axis
STANDARD FEATURES
- Joystick control for Pan, Tilt and Zoom; knob control for Focus
- Record and move up to 2000 marked positions
- Record and playback up to 34 minutes and up to 2000 takes
- Share recorded data with laptop; both streaming and upload/download
- Programmable maximum speeds for each motor
- Programmable smoothing for each motor
- Precise homing via operator command
- Up to 2500′ between controller and head
- Programmable motion limits
- Servo tuning from remote console
- Fujinon and Canon serial lens control
- Camera synchronization
- Extremely rigid with precise smooth motion
OPTIONAL FEATURES
- Direct connection from head to KuperNode for motion control and virtual set applications
- Intervalometer packages
- Motion capture package for additional recorded takes
- Step and direction output to control additional axes
- Preston lens control interface allowing recording and playback
STANDARD PACKAGE
Our standard package includes:
- Two axis remote head
- Remote controller
- Remote head power cable — 25 ft.
- Control Cable — 50 ft.
THE TALON remote head. from FILMCAST Live! on Vimeo.
The Talon is manufactured by Ravensclaw.
